RV50-28A-0-P-50/ M270 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

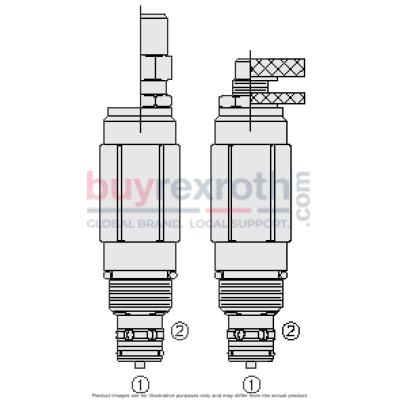

The Hydraforce 5613480P.M270 (5613480P.M270) is a screw-in, cartridge-style, pilot-operated relief valve with a reverse free flow check valve. It is specifically designed for use as a pressure-limiting device in demanding hydraulic circuits that require fast response, low hysteresis, low leakage, low pressure override, and reverse free flow capabilities. This relief valve efficiently blocks flow from port 1 to port 2 until the pressure at port 1 reaches a sufficient level, at which point the relief flow path opens from port 1 to port 2. Additionally, it allows for reverse flow from port 2 to port 1 when the pressure at port 2 exceeds that of port 1. The RV50-28X model is rated for higher operating pressures up to 345 bar (5000 psi) and provides various adjustment options that cannot be backed out of the valve. It can operate in both relief valve mode and check valve mode, featuring a built-in reverse flow check valve for enhanced functionality. The hardened spool and cage contribute to its long lifespan while ensuring quick response times. The design also incorporates an industry-common cavity for ease of integration into existing systems.
