RV10-26H-0-P-30/11.7 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

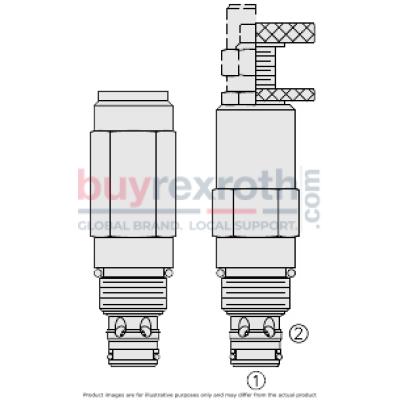

The Hydraforce 5613406P.11.7 (5613406P.11.7) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type hydraulic relief valve designed for pressure limiting in demanding hydraulic circuits that require fast response and low hysteresis. This valve effectively blocks flow from port 1 to port 2 until the pressure at port 1 reaches a level sufficient to unseat the piloting relief, allowing the main spool to shift and open port 1 to port 2. Notably, this valve is not suitable for cross-over relief applications. It features adjustments that cannot be backed out of the valve, with adjustment options A, B, and C equipped with positive stops to prevent springs from going solid. The hardened spool and cage enhance durability and ensure a long service life. It offers optional spring ranges up to 207 bar (3000 psi), providing fast and smooth responses to pressure surges in various applications. The valve is compatible with an industry-common cavity, facilitating ease of integration into existing hydraulic systems.
