RV10-26H-0-N-30/03.25 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

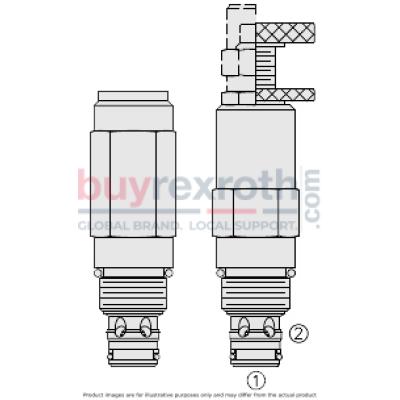

The Hydraforce 5613406.03.25 (Material Number 5613406.03.25) is a high-performance hydraulic relief valve designed for demanding hydraulic circuits requiring fast response and low hysteresis. This RV10-26X model is a screw-in, cartridge-style, pilot-operated, two-stage spool type valve that operates by blocking flow from port 1 to port 2 until a specified pressure at port 1 forces the piloting relief off its seat. This action allows the main spool to shift, thereby opening the flow between the ports. Notably, this valve is not suitable for cross-over relief applications. It features adjustments that cannot be backed out of the valve and offers adjustment options A, B, and C with positive stops to prevent springs from going solid. The hardened spool and cage ensure long-lasting performance, while optional spring ranges extend up to 207 bar (3000 psi). The RV10-26X provides quick and smooth responses to pressure surges and fits into an industry common cavity, making it versatile for various applications where precise pressure limiting is crucial.
