RV10-26H-0-N-15/09.5 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

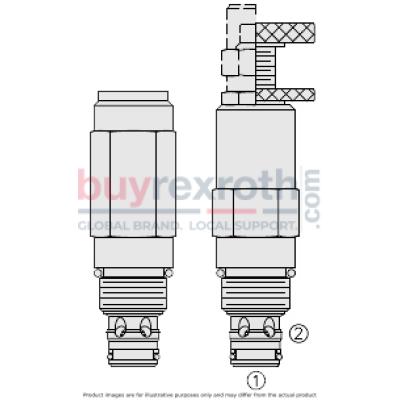

The Hydraforce 5613400.09.5 (5613400.09.5) is a screw-in, cartridge-style, pilot-operated spool type hydraulic relief valve designed for use as a pressure-limiting device in demanding hydraulic circuits requiring fast response and low hysteresis. This two-stage valve efficiently blocks flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the piloting relief, subsequently allowing the main spool to shift and open the flow path between ports. It features adjustments that cannot be backed out of the valve, with adjustment options A, B, and C including positive stops that prevent springs from becoming solid. The valve's construction includes a hardened spool and cage for enhanced durability and longevity. It offers optional spring ranges up to 207 bar (3000 psi), providing flexibility for various applications requiring different pressure settings. Known for its fast and smooth response to pressure surges, this relief valve fits an industry-common cavity, ensuring compatibility with standard hydraulic systems. However, it is important to note that this model cannot be used in cross-over relief applications.
