RV10-26A-8T-N-30/15 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

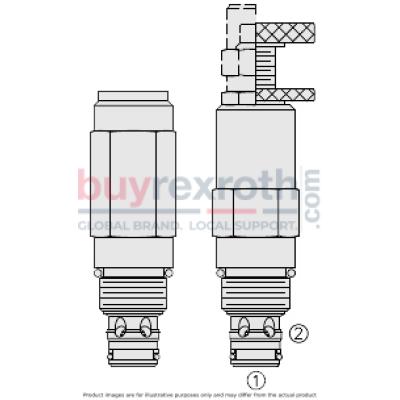

The Hydraforce 5613061.15 (5613061.15) is a high-performance hydraulic relief valve designed to serve as a pressure limiting device in demanding hydraulic circuits. This screw-in, cartridge-style valve features a pilot-operated, two-stage spool type mechanism that ensures fast response and low hysteresis, making it ideal for applications requiring precise pressure control. The RV10-26X operates by blocking flow from port 1 to port 2 until the pressure at port 1 reaches a level sufficient to unseat the piloting relief, thereby shifting the main spool and opening the flow path between the ports. It is important to note that this valve is not suitable for cross-over relief applications. Key features include non-backable adjustments with options A, B, and C that incorporate positive stops to prevent springs from becoming solid. The hardened spool and cage construction contribute to an extended service life, while optional spring ranges up to 207 bar (3000 psi) offer versatility in various settings. Additionally, its fast and smooth response to pressure surges ensures reliable performance in critical situations. The RV10-26X fits industry-standard cavities, facilitating easy integration into existing systems without requiring specialized modifications or tools.
