RV10-26A-0-N-04/M23 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

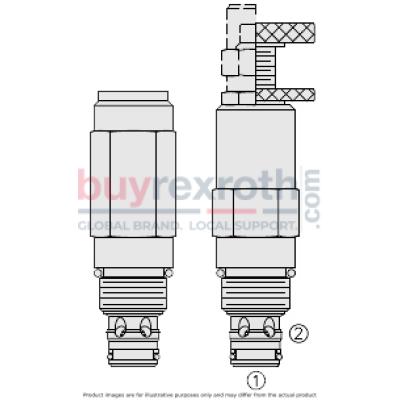

The Hydraforce 5613005.M23 (5613005.M23) is a screw-in, cartridge-style, pilot-operated spool-type hydraulic relief valve. Designed for use as a pressure limiting device, this two-stage valve is ideal for demanding hydraulic circuits requiring fast response and low hysteresis. The RV10-26X model operates by blocking flow from port 1 to port 2 until the pressure at port 1 reaches a level sufficient to unseat the piloting relief, which then allows the main spool to shift and open the flow path from port 1 to port 2. It is important to note that this valve is not suitable for cross-over relief applications. Notable features include adjustments that cannot be backed out of the valve, with positive stops in adjustment options A, B, and C to prevent springs from going solid. The hardened spool and cage ensure long-lasting durability, while optional spring ranges up to 207 bar (3000 psi) provide flexibility in various applications. The valve also offers fast and smooth response to pressure surges and fits an industry-common cavity design.
