RV10-26A-0-N-30/21 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

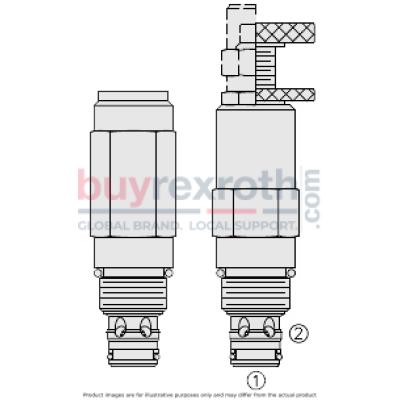

The Hydraforce 5613001.21 (Material Number 5613001.21) is a high-performance hydraulic relief valve, model RV10-26X, designed for integration into demanding hydraulic circuits where fast response and low hysteresis are critical. This screw-in, cartridge-style valve is pilot-operated and features a two-stage spool type mechanism that efficiently limits pressure within the system. The RV10-26X operates by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the piloting relief, which then shifts the main spool to open the flow path between the ports. Notably, this valve is not suitable for cross-over relief applications. Key features include non-backable adjustments with positive stops that prevent springs from becoming solid, ensuring reliable operation over time. The valve's construction includes a hardened spool and cage for enhanced durability and longevity. It offers optional spring ranges up to 207 bar (3000 psi), providing versatility for various applications. Additionally, it ensures a fast and smooth response to pressure surges, making it ideal for systems requiring quick adaptation to changing conditions. The RV10-26X fits into an industry-common cavity, facilitating easy installation and integration into existing systems.
