RV10-26A-0-N-30/13 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

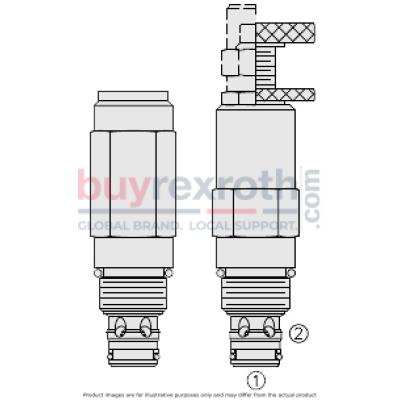

The Hydraforce 5613001.13 (5613001.13) is a screw-in, cartridge-style, pilot-operated (two-stage), spool-type hydraulic relief valve designed for use as a pressure-limiting device in demanding hydraulic circuits. This model ensures fast response and low hysteresis, making it suitable for applications requiring precise pressure control. The RV10-26X valve operates by blocking flow from port 1 to port 2 until sufficient pressure at port 1 forces the piloting relief off its seat, allowing the main spool to shift and open the flow path between the two ports. Notably, this valve is not suitable for cross-over relief applications. The design includes adjustment options A, B, and C with positive stops that prevent the springs from going solid, ensuring reliable performance and preventing potential damage. Additionally, the hardened spool and cage contribute to an extended lifespan of the component. The valve offers optional spring ranges up to 207 bar (3000 psi), providing versatility in various hydraulic systems. Its fast and smooth response to pressure surges further enhances its functionality in critical applications. The RV10-26X also features an industry-common cavity design, facilitating ease of integration into existing systems without requiring specialized components or modifications.
