RV10-20C-6T-N-12/07.5 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

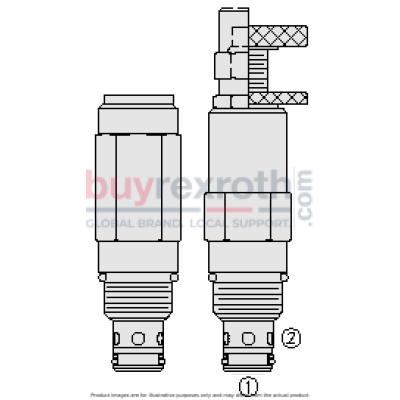

The Hydraforce 5610262.07.50 (Material Number: 5610262.07.50) is a screw-in, cartridge-style, direct-acting poppet type hydraulic relief valve designed for pressure limiting in hydraulic circuits. Known as the RV10-20X model, this valve efficiently manages flow by blocking it from port 1 to port 2 until the pressure at port 1 is sufficient to move the poppet from its seat. It is suitable for use with mineral-based or synthetic hydraulic fluids that possess lubricating properties. The RV10-20X offers rapid response to load changes and maintains low internal leakage, making it ideal for various hydraulic applications that require quick adaptation to pressure variations. While it serves as a reliable pressure-limiting device, users should note that the RVD58-20 model from the same manufacturer is recommended as a superior alternative with better performance metrics such as pressure rise characteristics and size efficiency, though it is not a direct drop-in replacement. The RV10-20X should not be used in crossover applications if corrosion resistance is required; in such cases, the GRV10-20 model should be considered instead.
