Manufacturer: Hydraforce
Material #: 561006321

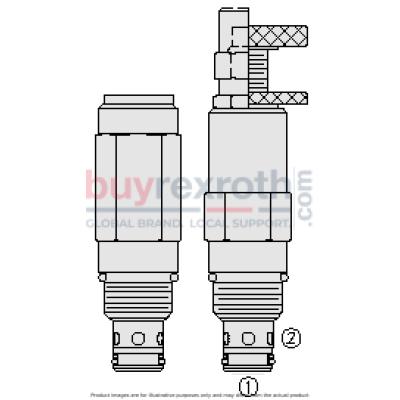

Model : RV10-20A-8T-N-33/21 RELIEF VALVE
$103.80 USD
Availability: 1 In Stock
Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.| Qty | Price | Savings |
|---|---|---|
| 5+ | $95.15 USD | $8.65 USD |
Qty: Delivered as early as August 13, 2025 when ordered in
| Ratings: | Pressure Ratings Pressure rating: 228 bar (3300 psi) RV10-20X 228 bar (3300 psi) Grv10-20x port 1 34.5 bar (500 psi) Grv10-20x port 2 Proof pressure: 517.1 bar (7500 psi) Burst pressure: 1037.7 bar (15000 psi) Crack pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) attained port 1 to port 2 Reseat pressure: Nominal 85% of crack pressure Relief pressure range: 6.9 to 206.8 bar (100 to 3000 psi) From zero to maximum control current Flow Ratings Flow rating: 38 lpm (10 gpm) At max pressure Maximum internal leakage: 5 drops/min To 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: RV10-20X type III clear zinc plating per ASTM B633 Grv10-20x 960 hour salt spray per ASTM b117 |
| Operating Parameters: | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 33.9 to 36.7 N-m (25 to 27 ft-lb) Maximum allowable torque: 67.7 N-m (50 ft-lb) H style plug torque: 33.9 N-m (25 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION RV10-20F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J NC Buna-N for Crossover Applications J V Fluorocarbon J VC Fluorocarbon for Crossover Applications J P Polyurethane J PC Polyurethane for Crossover Applications J U PPDI Urethane R Spring R 06 3.4 to 41.4 bar (50 to 600 psi) Spring Range R 12 10.3 to 82.7 bar (150 to 1200 psi) Spring Range R 23 17.2 to 158.6 bar (250 to 2300 psi) Spring Range R 33 17.2 to 227.5 bar (250 to 3300 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
