RV10-20A-8T-N-23/15 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

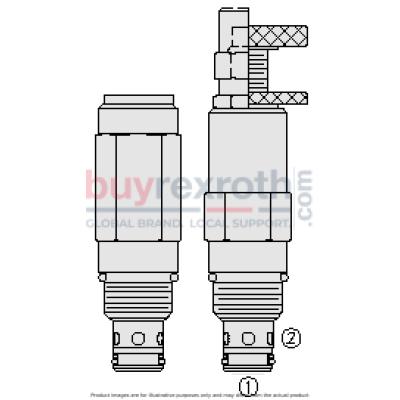

The Hydraforce 5610062.15 (5610062.15) is a screw-in, cartridge-style, direct-acting, poppet-type hydraulic relief valve designed for pressure limiting in hydraulic circuit protection. Specifically engineered for use with mineral-based or synthetic hydraulic fluids that possess lubricating properties, this valve effectively blocks flow from port 1 to port 2 until sufficient pressure at port 1 forces the poppet off its seat. Known for its rapid response to load changes, the RV10-20X is ideal for typical hydraulic circuits that require low internal leakage. While it can be used in existing and new applications, potential users should note that Hydraforce recommends considering the RVD58-20 as a superior alternative due to its enhanced performance characteristics such as better pressure rise and comparable response rates. However, it's important to recognize that the RVD58-20 is not a drop-in replacement despite having similar pressure and flow ratings; it also features a smaller size and lacks dynamic seals. For applications requiring corrosion resistance, the GRV10-20 variant is available but is not recommended for crossover applications.
