RV10-20A-8T-N-06/00.72 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

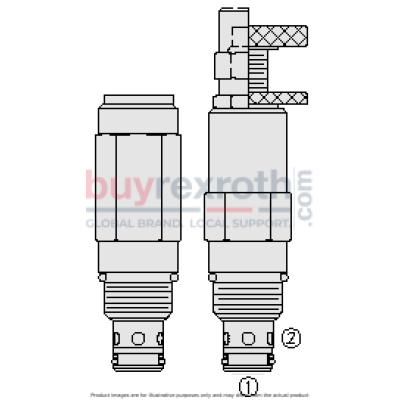

The Hydraforce 5610060.00.72 (5610060.00.72) is a screw-in, cartridge-style, direct-acting, poppet-type hydraulic relief valve designed to serve as a pressure-limiting device for hydraulic circuit protection. This valve is suitable for use with both mineral-based and synthetic hydraulic fluids that have lubricating properties. It operates by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to unseat the poppet, allowing fluid passage. The RV10-20X model is known for its quick response to load changes in typical hydraulic circuits and features low internal leakage, making it an efficient choice for maintaining system pressure limits. This product can be used in various applications where hydraulic circuit protection is required, ensuring that system pressures do not exceed safe levels and potentially cause damage or failure. The RV10-20X offers reliable performance, although it has been noted that the RVD58-20 model provides enhanced features such as better pressure rise characteristics and comparable response rates in a smaller size without dynamic seals. When considering this valve for new or existing applications, it's important to note that while it offers competitive performance and cost-effectiveness, there are newer alternatives available that might better suit specific needs due to their improved design characteristics. The GRV10-20 variant of this valve is also available but is not recommended for crossover applications due to its corrosion-resistant properties which may not be suitable in all scenarios.
