RV10-20A-0-N-23/M35 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

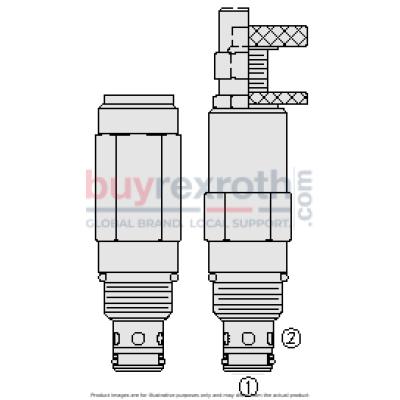

The Hydraforce 5610002.M35 (5610002.M35) is a screw-in, cartridge-style, direct-acting, poppet-type hydraulic relief valve designed to serve as a pressure-limiting device for common hydraulic circuit protection. This valve is suitable for use in systems utilizing mineral-based or synthetic hydraulic fluids with lubricating properties. The RV10-20X model effectively blocks flow from port 1 to port 2 until the pressure at port 1 reaches a level sufficient to unseat the poppet. Known for its rapid response to load changes, this valve is ideal for typical hydraulic circuits that require low internal leakage. While it excels in existing and new applications, users might consider the RVD58-20 as a superior alternative due to its enhanced features such as comparable pressure and flow ratings, better pressure rise characteristics, and smaller size without compromising performance. However, it's important to note that the GRV10-20 corrosion-resistant version of this valve is not recommended for crossover applications.
