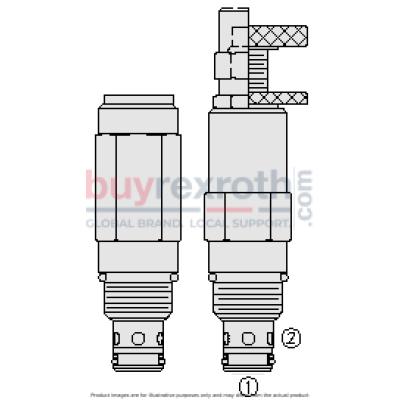

RV10-20A-0-N-12/02 RELIEF VALVE
Manufacturer: Hydraforce
Material #: 561000102
Model : RV10-20A-0-N-12/02 RELIEF VALVE
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***
The Hydraforce 5610001.02 (5610001.02) is a screw-in, cartridge-style, direct-acting poppet type hydraulic relief valve designed for pressure limiting in common hydraulic circuit protection. It is compatible with both mineral-based and synthetic hydraulic fluids with lubricating properties. The RV10-20X model effectively blocks flow from port 1 to port 2 until the pressure at port 1 becomes sufficient to unseat the poppet, ensuring fast response to load changes while maintaining low internal leakage. This relief valve is suitable for existing and new applications, although Hydraforce recommends considering their RVD58-20 model as a superior alternative due to its smaller size, better pressure rise characteristics, and comparable response rate and cost. The RV10-20X is not recommended for crossover applications when using the GRV10-20 corrosion-resistant version.
$44.00 USD
Availability: Backordered
Ships from US Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.
Qty:
Delivered as early as February 15, 2027
| Ratings: | Pressure Ratings Pressure rating: 228 bar (3300 psi) RV10-20X 228 bar (3300 psi) Grv10-20x port 1 34.5 bar (500 psi) Grv10-20x port 2 Proof pressure: 517.1 bar (7500 psi) Burst pressure: 1037.7 bar (15000 psi) Crack pressure defined: Pressure evident at 0.95 lpm (0.25 gpm) attained port 1 to port 2 Reseat pressure: Nominal 85% of crack pressure Relief pressure range: 6.9 to 206.8 bar (100 to 3000 psi) From zero to maximum control current Flow Ratings Flow rating: 38 lpm (10 gpm) At max pressure Maximum internal leakage: 5 drops/min To 85% of nominal setting Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: RV10-20X type III clear zinc plating per ASTM B633 Grv10-20x 960 hour salt spray per ASTM b117 |
| Operating Parameters: | Fluids:
Mineral based or synthetic with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC10-2 10-size-2-way Cavities Cartridge installation torque: 33.9 to 36.7 N-m (25 to 27 ft-lb) Maximum allowable torque: 67.7 N-m (50 ft-lb) H style plug torque: 33.9 N-m (25 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION RV10-20F-H-J-R/S F Adjustment Option F A 1/4" Hex Allen Head F B 1-1/2" Diameter Aluminum Knob with Aluminum Lock Knob F C 1/4" Hex Allen Head with Cover Cap F F Factory Preset Non-Adjustable F H Factory Preset Hidden Adjustment F L 1/4" Hex Allen Head with Cover Cap and Lockwire Holes H Line Body H 0 No Body H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 4B Aluminum BSPP 1/2" (4) H 4BD Ductile Iron BSPP 1/2" (4) J Seal J N Buna-N J NC Buna-N for Crossover Applications J V Fluorocarbon J VC Fluorocarbon for Crossover Applications J P Polyurethane J PC Polyurethane for Crossover Applications J U PPDI Urethane R Spring R 06 3.4 to 41.4 bar (50 to 600 psi) Spring Range R 12 10.3 to 82.7 bar (150 to 1200 psi) Spring Range R 23 17.2 to 158.6 bar (250 to 2300 psi) Spring Range R 33 17.2 to 227.5 bar (250 to 3300 psi) Spring Range S Setting S MXXX Spring Setting in XXX bar S XX Spring Setting in XX psi (x 100) |
