RV08-29A-0-N-35/M180 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

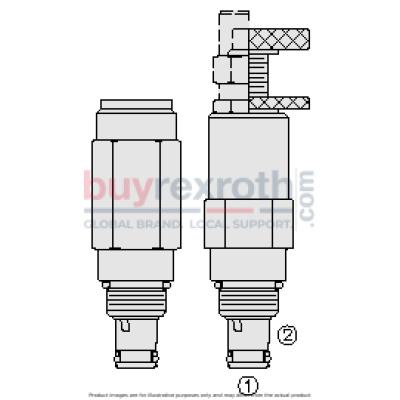

The Hydraforce 5600530.M180 (5600530.M180) is a screw-in, cartridge-style, direct-acting, poppet-type hydraulic relief valve designed for controlling pressure in low flow systems that manage pilot operating valves. This model, known as the RV08-29X, effectively blocks flow from port 1 to port 2 until the pressure at port 1 is sufficient to move the spring-opposed poppet from its seat. It features adjustments that cannot be backed out of the valve and offers a variety of pressure adjustment options, including non-adjustable factory presets. The RV08-29X is constructed with a hardened poppet and cage for enhanced durability and longevity. It supports optional spring ranges up to 241 bar (3500 psi) and provides a smooth response to pressure surges. The valve fits an industry common cavity and boasts a compact size for versatile application use. While this model is suitable for existing and new applications, it can be functionally replaced by the RVD58-20 in most scenarios due to comparable pressure and flow ratings, response rate, better pressure rise characteristics, smaller size, and competitive cost. However, it's important to note that a VC08-2B cavity variation is required for some manifolds which may allow for drop-in replacement.
