RV58-20H-0-P-46/ M275 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

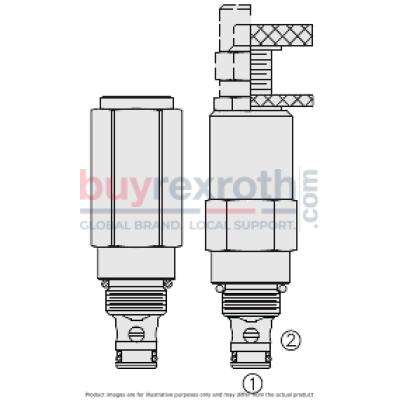

The Hydraforce 5600400.M275 (Material Number: 5600400.M275) is a screw-in, cartridge-style, direct-acting, poppet-type hydraulic relief valve specifically designed for lower flow circuits that require minimal internal leakage. This RV58-20X model effectively blocks flow from port 1 to port 2 until the pressure at port 1 overcomes the spring-opposed poppet, allowing fluid passage. It is rated for an impressive operating pressure of up to 345 bar (5000 psi), making it suitable for demanding applications. The valve offers a bi-directional pressure option and features various adjustment possibilities that prevent the springs from reaching a solid state. Its compact size allows for easy integration into systems with limited space, while its rapid response to pressure changes ensures efficient performance. Though this model serves well in existing and new applications, Hydraforce suggests considering their RVD58-20 as an alternative due to its improved characteristics such as better pressure rise features and smaller size. The VC08-2B cavity variation is necessary for installation, and in some cases, manifolds might permit a drop-in replacement.
