RV58-20A-0-P-46/M190 RELIEF VALVE

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

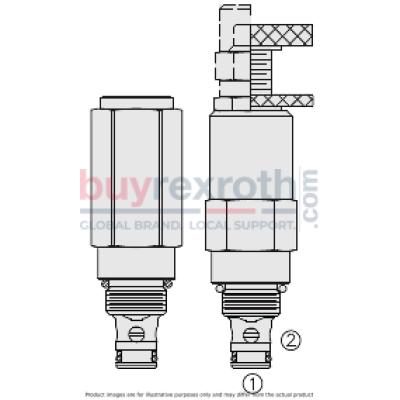

The Hydraforce 5600095.M190 (5600095.M190) is a precision-engineered hydraulic relief valve designed for specialized lower flow circuits that demand minimal internal leakage and high reliability. The RV5820X model is a screw-in, cartridge-style, direct-acting, poppet type valve that functions to control hydraulic flow with high efficiency and accuracy. It operates by blocking flow from port 1 to port 2 until the pressure at port 1 is sufficient to displace the spring-opposed poppet from its seat, allowing flow through the valve. This model is rated for a higher operating pressure of up to 345 bar (5000 psi), making it suitable for rigorous applications where robust performance is required. The valve offers a bidirectional pressure feature and includes various adjustment options that ensure the settings cannot be inadvertently altered or cause the springs to go solid, thereby enhancing safety and stability. Its design facilitates rapid response to changes in pressure, which is critical in maintaining system equilibrium and performance. Compact in size, the RV5820X integrates seamlessly into various hydraulic systems without requiring significant modifications. This makes it an ideal choice for both existing systems looking for replacement valves and new installations seeking reliable and efficient hydraulic control solutions. The valve also highlights its versatility with compatibility considerations such as the VC082B cavity variation, which may allow for drop-in replacements in some manifolds. Overall, the Hydraforce 5600095.M190 offers a combination of high-pressure operation, versatile configuration options, and compact design, positioning it as a superior choice for effective hydraulic flow management in specialized applications.
