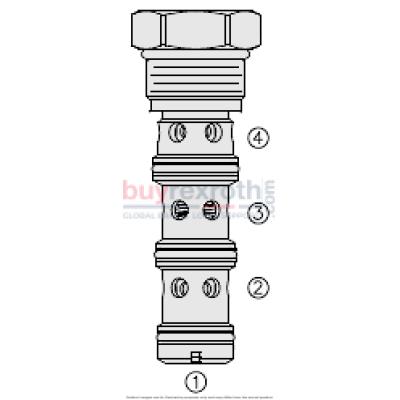

The Hydraforce FD56-45-0-P-66 (5436566P) is a high-performance screw-in cartridge, spool type flow divider-combiner valve designed for precise control in hydraulic systems. This model provides pressure-compensated proportional division of inlet flow or combining of two return flows, ensuring consistent operation regardless of system pressure fluctuations. It is particularly efficient in synchronizing flow both in dividing and combining modes. Constructed with hardened parts, the FD56-45-0-P-66 guarantees long-lasting durability and reliability. It features a quiet, modulated response to operational changes and has a wide operating flow range suitable for various applications. The valve’s design includes a floating cage which allows for high installation torque and compatibility with industry-standard cavities. This model accommodates fluid temperatures from -40 to 100°C with buna N seals and up to 204°C with fluorocarbon seals. It supports mineral-based or synthetic hydraulic fluids within a viscosity range of 7.4 to 420 cSt and operates effectively within an ISO 4406 contamination level of 18/16/13. The FD56-45-0-P-66 is also versatile in terms of installation, requiring no specific orientation and fitting into VC164 or HVC164 cavities for high-pressure applications. In terms of performance specifications, the valve manages inlet flows from 32 to 128 lpm (8.5 to 34.0 gpm) based on the model code 66, with a pressure rating up to 420 bar (6090 psi) during peak duty cycles. Accuracy in flow division or combination is maintained at approximately ±10% for this model configuration. Overall, the Hydraforce FD56-45-0-P-66 offers robust construction and flexible operation parameters making it an essential component for advanced hydraulic systems requiring reliable flow management.
