FR10-E40F-0-N-M12

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

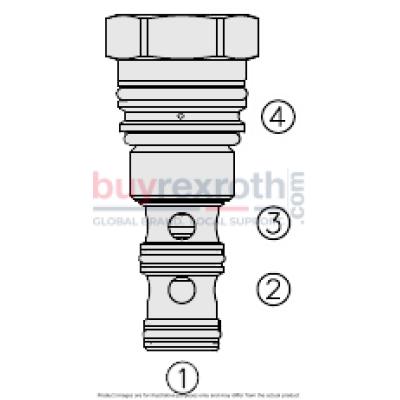

The Hydraforce 5426460.M12 (5426460.M12) is a high-performance hydraulic flow regulator valve, specifically the FR10E40F model. This valve is designed as a screw-in, cartridge style, pressure compensated, nonadjustable unit with an optional vented port feature. It functions effectively in various configurations: when port 4 is blocked, it operates as a priority type flow regulator by directing the pump flow primarily to priority port 3, then diverting any excess to bypass port 2. Alternatively, with port 4 open, the spool shifts to allow restricted flow through the vented port 4 while still routing remaining flow through bypass port 2. This model is particularly suited for use in accumulator charging circuits where it can be paired with an unloading valve that pilots the vented port 4 of the FR10E40F. The design of this valve ensures a constant flow rate from port 3 irrespective of pressure changes downstream of priority port 3 or in the bypass leg at port 2. Key features include built-in priority bypass functionality and compatibility with unloading valves for accumulator charging operations. The FR10E40F also boasts hardened parts to enhance durability and ensure a long service life, alongside a quiet and modulated response to operational changes.
