FR12-30F-12T-N/ 9.00 FLOW REG.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hydraforce directly.***

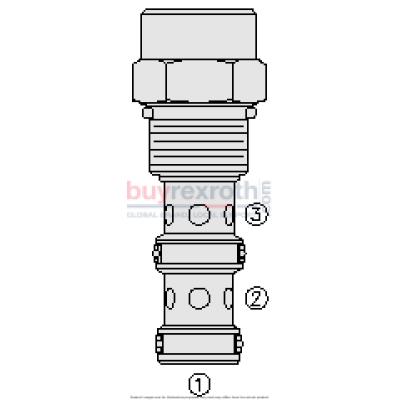

The Hydraforce FR12-30F-12T-N-/9.00 (5423370.9.00) is a screw-in, cartridge-style, pressure compensated, non-adjustable hydraulic flow regulator valve. This model is adept at functioning as a priority type flow regulator, channeling the pump flow primarily to port 3 and then redirecting any excess to port 2. It can also operate as a restrictive type, 2-way flow regulator when the bypass at port 2 is blocked. The valve is designed to maintain a consistent flow rate from port 3 irrespective of pressure variations either downstream of priority port 3 or in the bypass leg at port 2. Engineered for durability and performance, the FR12-30F-12T-N-/9.00 features hardened parts ensuring longevity and a quiet, modulated response for effective operation. It fits in a VC123 cavity and supports various seal options provided in the SK123XMM seal kit. The valve's robust design allows it to handle pressures up to 3500 psi with proof pressure at 5000 psi and burst pressure reaching up to 13000 psi. Flow capabilities include a priority flow rating from 0.1 to 13.0 gallons per minute and an inlet flow rating up to 25 gallons per minute maximum. It operates efficiently within fluid temperatures from -40 to +212 degrees Fahrenheit with Buna N seals, extending up to +400 degrees Fahrenheit with fluorocarbon seals. This model does not impose any orientation restrictions during installation, offering flexibility in system design with an installation torque between 33 to 37 foot-pounds. The internal wetted surface area measures around 34.3 square inches, ensuring ample contact for heat dissipation and efficiency in hydraulic fluid management.
