Manufacturer: Hydraforce
Material #: 5402340015

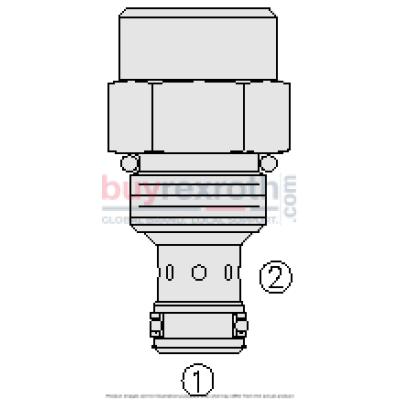

Model : FR08-20F-6T-N-/ 0.15 FLOW REGULATOR
$103.80 USD
Availability: 34 In Stock
Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.| Qty | Price | Savings |
|---|---|---|
| 5+ | $95.15 USD | $8.65 USD |
Qty: Delivered as early as October 14, 2025 when ordered in
| Ratings: | Pressure Ratings Pressure rating: 240 bar (3500 psi) Proof pressure: 345 bar (5000 psi) Burst pressure: 896 bar (13000 psi) Flow Ratings Flow rating: 0.2 to 7.5 lpm (0.05 to 2.0 gpm) Temperature Ratings Operating fluid temperature: -40 to 100 °C (-40 to 212 °F) With buna N seals -26 to 204 °C (-15 to 400 °F) With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) With polyurethane and urethane seals Storage temperature: -40 to 70 °C (-40 to 160 °F) Ambient temperature: -40 to 70 °C (-40 to 160 °F) Other Ratings Corrosion protection: 960 hr salt spray per ASTM b117 (GFR08-20F) |
| Operating Parameters: | Fluids:
Mineral based or synthetic hydraulic fluid with lubricating properties Fluid viscosity range: 7.4 to 420 cSt Maximum operating contamination level: 18/16/13 per ISO 4406 |
| Performance: |  |
| Installation Specifications: | Cavity:
VC08-2 08-size-2-way Cavities Cartridge installation torque: 24 to 27 N-m (18 to 20 ft-lb) Maximum allowable torque: 47.5 N-m (35 ft-lb) Orientation restriction: None |
| Order Code: | POSITION CODE DESCRIPTION FR08-20F-H-J-/T F Adjustment Option F F Factory Preset Non-Adjustable H Line Body H 0 No Body H 4T Aluminum SAE 4 H 6T Aluminum SAE 6 H 8T Aluminum SAE 8 H 6TD Ductile Iron SAE 6 H 8TD Ductile Iron SAE 8 H 2B Aluminum BSPP 1/4" (2) H 3B Aluminum BSPP 3/8" (3) H 3BD Ductile Iron BSPP 3/8" (3) J Seal J N Buna-N J V Fluorocarbon J P Polyurethane J U PPDI Urethane T Flow setting T XX Flow setting |
