350LE0130-PWR10A00-V5,0-M-U5 (2 PACK)

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Hengst directly.***

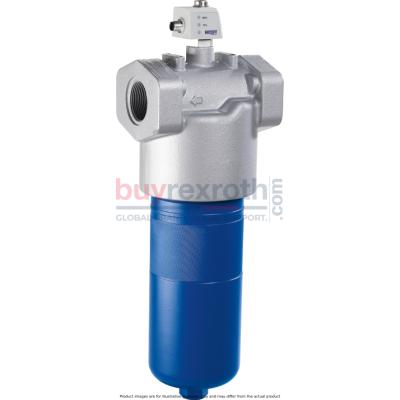

The Hengst 350LE0130-PWR10A00-V5,0-M-U5 (1007498B) is a hydraulic inline filter designed for the filtration of solids from fluids in hydraulic systems and lubricating oil systems. This model features a nominal size of 0130 and utilizes a multilayer glass fiber material, designated as PWR10, to provide effective filtration with a filtration grade of 10. The filter is constructed with a robust housing made from nodular cast iron and carbon steel, ensuring durability under high-pressure conditions, with both nominal and maximum working pressures rated at 350 bar. The design includes an NBR seal (seal code: M) for reliable sealing performance. This inline filter is intended for installation in pipelines and features top mounting with horizontal port positioning. It has a port designation of 1 5/8-12 UN-2B following the SAE standard, allowing for straightforward integration into existing systems. The support cage is made from standard materials, and the filter is equipped with an optical indicator to provide visual feedback on the condition of the filter element. It also incorporates a cyclone effect to enhance filtration efficiency by promoting particle separation before reaching the filter media. The Hengst model includes additional features such as suitability for HFC/HFA fluids and has a collapse pressure rating of 30 bar. The design does not include a check valve or lid lifting device but provides an indicator switching point at 5 bar to alert users when maintenance or replacement is required. This hydraulic inline filter offers reliable performance for demanding applications requiring efficient particulate removal from fluid systems.
