VT-SR2-1X/0/EFF00479

Manufacturer: Bosch Rexroth

Material #: R978052712

Model : VT-SR2-1X/0/EFF00479

Destination

$3,905.95 USD

Availability: Backordered

Ships from US

Add to Cart

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.

Qty:
Delivered as early as February 24, 2027

Voltage input Controller for valve flow Enable input Output stage with dither signal Measuring instrument for valve flow display Reverse polarity protection for the operating voltage

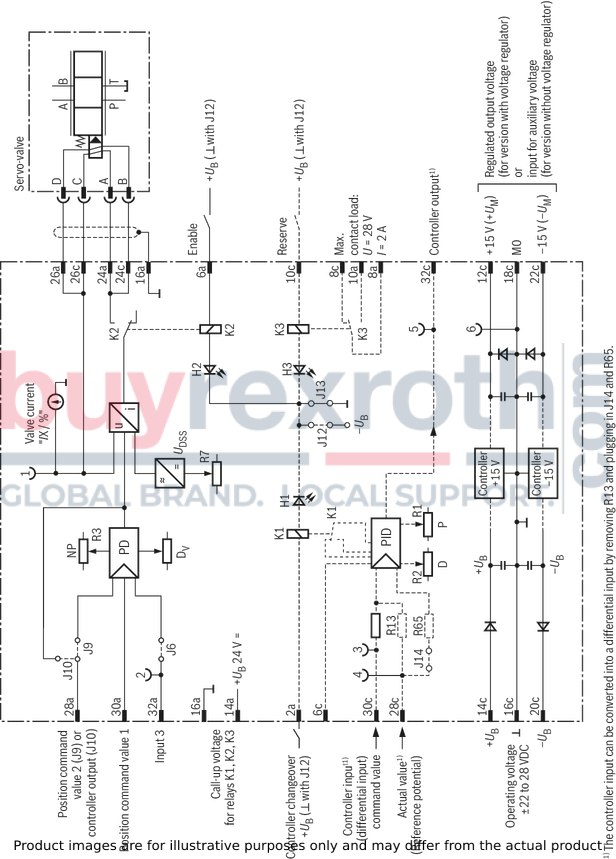

The valve amplifiers operate with a push-pull output stage with bipolar transistors. The output of this output stage can be connected or disconnected by means of an enable circuit (relay K2). The enable is indicated by the LED "H2" on the front plate being illuminated. The switching voltage of all relays is defined by means of jumpers J12 and J13 to either 0 V or +UB (factory +UB).

The output stage consists of an I controller with connected dither signal generator. The amplitude of the dither signal is set by means of R7. The pre-stage (current command value) is controlled via a PD controller. The actual current value returned is simultaneously indicated by the instrument on the front plate.

The PD controller is supplied the position command value with the D share only affecting input 3.

The zero point can be set via R3 (NP) from the front plate.

The required symmetric operating voltage +UB is protected against reversed polarity. The design without voltage regulator requires an additional stable auxiliary voltage (±UM) to supply the controller electronics. The auxiliary voltage port is protected against reversed polarity up to a maximum current of 1 A.

As an option, the amplifier can be equipped with a PID controller (D share only affects the actual value) with a switchable PI share and a backup relay with potential-free changeover contact. This controller can be used to superimpose a further control loop (e.g. for drive control). The P and D share can be set at the front plate. The controller switching status is indicated by the LED "H1", the relay at LED "H3" (LEDs illuminated if relays are applied). The PID controller fitting is customer-specific and therefore has to be specified in the order in plain text. These amplifiers receive a special type designation upon delivery. The backup relay is loadable up to 28 V and 2 A.

01	Valve amplifier for servo valves without electrical position feedback	VT-SR2

02	Component series 10 ... 19 (10 ... 19: unchanged installation and connection dimensions)	1X

03	Without ±15 V voltage regulator	0
03	With ±15 V voltage regulator	1

04	60 mA valve flow (for valves: 4WS2EM 6-2x, 4WS2EM 10-5x)	60
04	100 mA valve flow (for valve: 4WS2EM 16-2x)	100

05	Further details in the plain text	*

01		02		03		04	05
VT-SR2	‒	1X	/		‒		*

General

Type / version	VT-SR2-…/...-60	VT-SR2-…/...-100
Component series	1X
Type of electronics	Analog
Design	Euro-card

Voltage supply

Type / version					VT-SR2-…/...-60	VT-SR2-…/...-100
Operating voltage	with integrated voltage regulator		UB	V	± 24
		Upper limit value	UB(t)max	V	± 28
		Lower limit value	UB(t)min	V	± 22
	without integrated voltage regulator		UB; UM	V	±24; ±15.0
		Upper limit value	UB(t)max; UM(t)max	V	±28; ±15.2
		Lower limit value	UB(t)min; UM(t)min	V	±22, ±14.8
Current consumption	max.		Imax	V	0.15 A

Analog inputs

Type / version					VT-SR2-…/...-60	VT-SR2-…/...-100
Command value	Voltage	grounded on one side, first input 1)	Ue	V	0 … ±10
		grounded on one side, second input 2)	Ue	V	0 … ±10

1)	RE = 50 kΩ
2)	RE = 50 kΩ, J9 gesteckt

Digital inputs

Type / version				VT-SR2-…/...-60	VT-SR2-…/...-100
Enable 1)	On (active)	Ue	V	+24 (with J13); 0 (with J12)
Controller change-over 1)		Ue	V	+24 (with J13); 0 (with J12)
Backup relay 1)		Ue	V	+24 (with J13); 0 (with J12)

1)	RE = 700 Ω (relay)

Analog outputs

Type / version				VT-SR2-…/...-60	VT-SR2-…/...-100
Valve flow command value	Voltage	UO		-10 V ≙ +60 mA (J10 plugged)

Solenoid outputs

Type / version				VT-SR2-…/...-60	VT-SR2-…/...-100
Solenoid current	max.	Imax	mA	60	100
Dither signal		f	Hz	340 ±5 % (Ipp = 3 mA)

Position transducer

Type / version			VT-SR2-…/...-60	VT-SR2-…/...-100
Oscillator frequency	f	kHz	5

Other information

Type / version				VT-SR2-…/...-60	VT-SR2-…/...-100
Relay	Pickup voltage		V	+24 (UB)
	Nominal voltage	U	V	26
	Response voltage	U	V	13
	Step-back voltage	U	V	1.3 ... 6.5
	Switching time	t	ms	4
	Coil resistance at 25 °C	R	Ω	700
Reference voltage	Potentiometer supply	U	V	±15 ±2 % (Imax = 150 mA)
Anschlussart				32-pole male multipoint connector, DIN 41612, design D
Ambient temperature range		ϑ	°C	0 … 50
Storage temperature range		ϑ	°C	-20 … 70
Weight		m	kg	0.2

For applications outside these parameters, please consult us!

The amplifier card may only be unplugged and plugged when de-energized.

Command values may only be switched via relays with gold-plated contacts (low voltage, low currents).

Card relays may only be switched (enable, controller change-over, reserve) using contacts with a load capacity of approx. 40 V; 50 mA.

Always shield command and actual value cables; connect shielding to ground (⊥) on the card-side, open at one side.

Do not lay signal lines close to power lines.

Recommendation:

Also shield the solenoid conductors (to ⊥ on one side).

Up to a length of 50 m, use cable type LiYCY 1.5 mm2, for longer lengths please ask.
