LOGIC COVER LFA16DBW2-7X/315P00X00F00D00

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

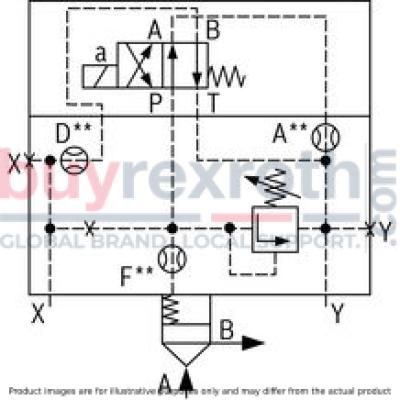

The Bosch Rexroth LFA16DBW2-7X/315P00X00F00D00 (R901298788) is a sophisticated hydraulic control valve designed for subplate mounting with a size of 16. It features manual pressure adjustment capabilities that can be deactivated if necessary. This product is equipped with an installation surface according to ISO standards and is intended for use with way cartridge valves, providing reliable pressure limiting in conjunction with such valves as indicated by the hydraulic symbol. The LFA16DBW2-7X/315P00X00F00D00 valve operates at a pressure rating of up to 315 bar and includes hexagon specifications for ease of installation. The valve falls under Productgroup ID and utilizes NBR seals compatible with various hydraulic fluids including HL, HLP, HLPD, HVLP, HVLPD, and HFC. This model integrates pilot-operated way cartridge valves either in seat or spool design. The power section of the cartridge valve is installed into a standardized hole according to DIN ISO norms and secured with a control cover. For manual or electrically proportional pressure adjustment, the pilot control valve is either integrated into or mounted on the control cover following DIN dimensions. The LFA16DBW2-7X/315P00X00F00D00 can perform different pressure functions by combining it with appropriate control covers. Its pressure relief function involves a seat valve design without an area difference at port B, ensuring that when the set pressure is reached, the spool opens to limit the pressure at port A as per flow characteristics. Similarly, its pressure reducing function allows free flow from port B to A until the set pressure is met, after which it reduces the pressure at port A accordingly. Overall, this Bosch Rexroth hydraulic control valve offers high precision and reliability for controlling pressures within hydraulic systems across various applications.
