POPPET DIRECTIONAL VALVE KSDER0NA/CN0V

Manufacturer: Bosch Rexroth

Material #: R901252717

Model : KSDER0NA/CN0V

Destination

$410.37 USD

Availability: Backordered

Ships from CA

Add to Cart

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.

Qty:
Delivered as early as November 13, 2026

POPPET DIRECTIONAL VALVE KSDER0NA/CN0V

2/2 directional poppet valve, direct operated with solenoid actuation

Unpacked Weight: 0.283 kg

Two different mounting cavities, R/B or R/C Direct operated directional seat valve with solenoid actuation, tight on both sides Blocked port tight in a leak-free form Reliable switching even after longer periods of standstill Wet-pin DC solenoids Solenoid coil can be rotated

General

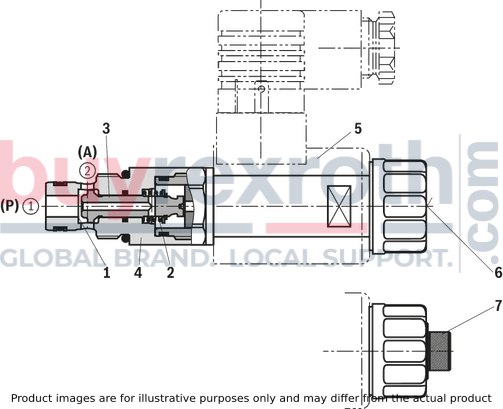

The 2/2 directional seat valves are direct operated, pressure-compensated screw-in cartridge valves. They basically consist of a screw-in section (4) with valve seat (1), solenoid (5) as well as closing element (3) and compression spring (2).

Function

The initial position of the valve (normally open "P" or normally closed "N") is determined by the position of the closing element (3) and the arrangement of the compression spring (2). Due to the structural design, the 2/2 directional seat valves are always pressure-compensated in relation to the actuating forces. The main ports ➀ and ➁ can be loaded with an operating pressure of 350 bar (see Technical data).

At symbol "P", the closing element (3) is pressed onto the seat by the solenoid (5), with symbol "N" by the compression spring (2). The flow is blocked in a leak-free manner.

The manual override allows for the switching of the valve without solenoid energization. It is available in concealed version "N9" (6) or in screwable version "N11" (7) (see ordering codes).

The screwable manual override (7) is to be screwed back into the initial position after actuation.

Version "K4" (with mating connector)

Type KSDER0PA/BN0V

Version "C4"

Version "K40"

Screw-in cartridge valve
Maximum operating pressure 350 bar (5000 psi)
Maximum flow 20 l/min (5 gpm)
Cavity M20x1.5

Product family classification	2/2 directional poppet valve, direct operated with solenoid actuation
Product family type	KSDE
Max. pressure	350
Ports number	2
Max. flow	20
Positions	2
Normal position	Normally closed
Spool Poppet	Poppet type
Type of connection	Screw-in cartridge valve
Direct - Pilot	Direct acting
Cavity	M20x1.5
Nominal flow	20
Type of actuation	Solenoid-actuated on/off
Coil	GZ37
Coil integrated	To be ordered separately
Sealing material	FKM
Hydraulic fluid	HL,HLP,HETG,HEPG,HEES
Productgroup ID	9,10,11,12,13,14
Product type	KSDE
Product family	2 ways
Weight	0.283

(valve without coil) 1)

01	02	03	04	05		06	07	08	09
KSDE	R	0		A	/			V	*

01	Directional seat valve, direct operated, electrically operated					KSDE
02	Maximum operating pressure 350 bar					R
03	Component size					0
04	2 main ports
	Symbols			Normally closed		N
				Normally open		P
05	Component series					A
06	High Performance and mounting cavity R/B (see Mounting cavity)					B
	High Performance and mounting cavity R/C (see Mounting cavity)					C
07	Without manual override					N0
	With concealed manual override					N9
	With screwable manual override					N11
	Symbol N			Symbol P
	N0	N9	N11	N0	N9	N11
	X	–	X	X	X 2)	–
Seal material
08	FKM seals (other seals upon request)					V
	Observe compatibility of seals with hydraulic fluid used.
09	Further details in the plain text					*

	1) Complete valves with mounted coil available on request
	2) Screwable manual override “N10” (actuation by means of internal hexagon with lock nut), possible as separate order, material no. R901051231; ordering code “N9” !

general

Size			0
Weight	Valve	kg	0.3
Weight	Coil	kg	0.25
Installation position			any
Ambient temperature range		°C	-40 … +110

hydraulic

Size			0
Maximum operating pressure		bar	350
Maximum flow 1)		l/min	20
Hydraulic fluid			see table
Hydraulic fluid temperature range		°C	-40 … +80
Viscosity range		mm²/s	5 … 1,000
Viscosity range	Ideal	mm²/s	10 … 100
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c) 2)			Class 20/18/15 according to ISO 4406 (c)
Load cycles		million	10

1)	See performance limits
2)	The cleanliness classes specified for the components must be adhered to in hydraulic systems. Effective filtration prevents faults and simultaneously increases the life cycle of the components. For the selection of the filters, see www.boschrexroth.com/filter.

Hydraulic fluid		Classification	Suitable sealing materials	Standards
Mineral oil		HL, HLP	FKM, NBR	DIN 51524
Bio-degradable	Insoluble in water	HEES (synthetic esters)	FKM	VDMA 24568
	Insoluble in water	HETG (rape seed oil)	FKM, NBR	VDMA 24568
	Soluble in water	HEPG (polyglycols)	FKM	VDMA 24568
Other hydraulic fluids on request

electrical

Voltage type			Direct voltage
Power supply 1)		V	12 24
Voltage tolerance against ambient temperature			See characteristic curves
Power consumption		W	22
Duty cycle		%	100
Maximum coil temperature 2)		°C	150
Switching time according to ISO 6403 (solenoid horizontal)	ON (➀ → ➁)	ms	≤ 95
Switching time according to ISO 6403 (solenoid horizontal)	OFF (➁ → ➀)	ms	≤ 95
Maximum switching frequency	Version	Hz	9000
Protection class according to DIN EN 60529	Version "K4"		IP65 (with mating connector mounted and locked)
	Version "C4"		IP66 with mating connector mounted and locked IP69K with Rexroth mating connector (material no. R901022127)
	Version "K40"		IP69K with mating connector mounted and locked

1)	Other voltages upon request
2)	Due to the surface temperatures of the solenoid coils, the standards ISO 13732-1 and EN 982 need to be adhered to!

With the electrical connection "K4", the protective earthing conductor (PE) is to be connected appropriately.

For applications outside these parameters, please consult us!

Voltage tolerance against ambient temperature; duty cycle

Voltage range and duty cycle dependent on the ambient temperature

(measured with HLP46, ϑoil = 40 ±5 °C) and 24 V coil

Δp-qV characteristic curves

(measured with HLP46, ϑOil = 40 °C ± 5 °C) and 24 V coil

Performance limits (measured with HLP46, ϑOil = 40 ±5 °C and 24 V coil)

Attention!

The performance limit has been determined with the solenoids at operating temperature and with 10 % undervoltage.

Symbol “N” normally closed

Symbol “P” normally open

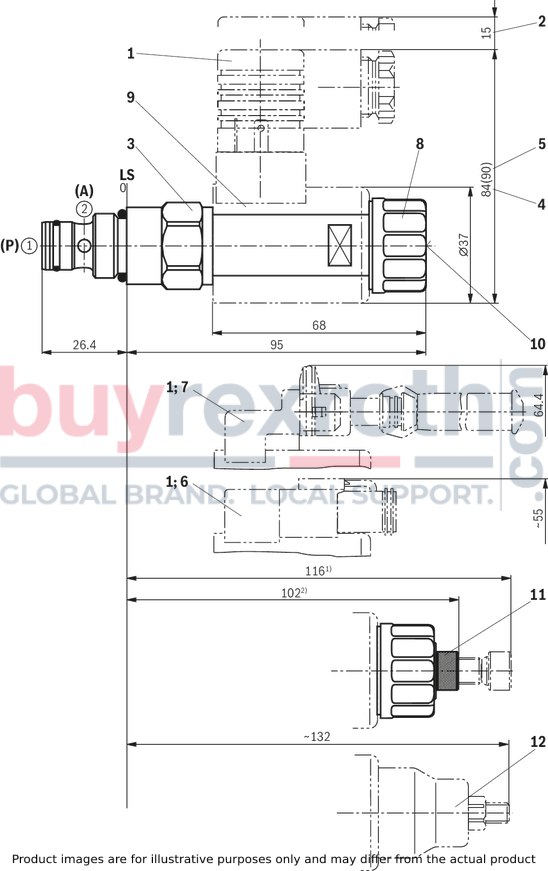

Dimensions in mm

1	Mating connector (separate order, see data sheet 08006)
2	Space required to remove the mating connector
3	SW24, tightening torque MA = 25 +5 Nm
4	Dimension for mating connector “K4”, without circuitry
5	Dimension () for mating connector “K4”, with circuitry
6	Version "K40"
7	Version "C4"
8	Nut, tightening torque MA = 5+1 Nm
9	Coil (separate order, see type key)
10	Concealed manual override "N9", optional
11	Screwable manual override "N11", optional
12	Screwable manual override “N10” (separate order)
➀	Main port 1, pump P 3)
➁	Main port 2, actuator A 3)
LS	Location shoulder
