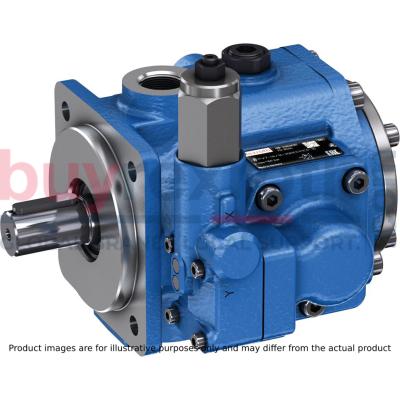

VANE PUMP PV7-1X/25-45RE01MC3-08

Manufacturer: Bosch Rexroth

Material #: R900538525

Model : PV7-1X/25-45RE01MC3-08

Destination

$5,588.05 USD

Availability: Backordered

Ships from CA

Add to Cart

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.

Qty:
Delivered as early as December 29, 2026

VANE PUMP PV7-1X/25-45RE01MC3-08

Variable displacement pump, size 45 cm³, pressure 80 bar for industrial applications, open circuit

High reliability in industrial use. Low noise and pulsation level. Precise control behavior thanks to low hysteresis with high repetition accuracy. Can be combined flexibly with other Rexroth pumps.

Unpacked Weight: 18.75 kg

Cast iron housing
Rotary vane variable displacement pump
For industrial applications in open circuit
With NBR seals
Maximum displacement 150 cm³
Pilot-operated
Frame sizes 10, 16, 25, 40, 63, 100
Maximum operating pressure 160 bar

Data Sheet	Download Data Sheet
3D CAD	Download 3D CAD

Displacement type	variable
Size	45
Max. pressure	80
Max. flow	81
Through-drive	with
Direction of rotation	clockwise rotation
Shaft end	Cylindrical Ø 25 mm with fitting key, ISO 3019-2
Mounting flange	4-hole mounting flange 100B4HW according to ISO 3019-2
Hydraulic fluid	HLP,HLPD,HVLP,HVLPD
Seals	NBR
Speed min.	900
Productgroup ID	9,10,11,12,13,14
Speed max.	1800
Weight	18.75
