SWIVEL HEAD CGKA 100 K&

Manufacturer: Bosch Rexroth

Material #: R900327371

Model : SWIVEL HEAD CGKA 100 K&

Destination

$1,507.45 USD

Availability: Backordered

Ships from US

Add to Cart

Note: Sales tax, shipping, and applicable tariffs will be calculated at checkout.

Qty:
Delivered as early as January 28, 2027

For applications outside these parameters, please consult us!

Dimensions: Swivel head CGKA - AP 6 (clampable)

ISO 8133

1)	Lubricating nipple, cone head form A according to DIN 71412
2)	Related bolt Ø h6

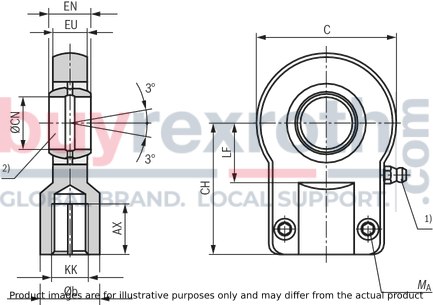

Dimensions: Swivel head CGKA - AP 6 (clampable)

Type	Suitable for series	KK	AX	Øb	C	CH		ØCN		EN		EU	LF	MA 5)	m 6)	C0 7)	Fadm 8)
			min.		max.			3)				max.	min.			(head)
			mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	Nm	kg	kN	kN
CGKA 12 1)	CDT3 CGT3 CST3 - - - -	M10 x 1.25	15	17	40	42	js13	12	0 - 0.008	10	0 - 0.12	8	16	9.5	0.15	17	6.3
CGKA 16 2)	CDT3 CGT3 CST3 - - - -	M12 x 1.25	17	21	45	48	js13	16	0 - 0.008	14	0 - 0.12	11	20	9.5	0.25	28.5	10.5
CGKA 20 2)	CDT3 CGT3 CST3 - - - -	M14 x 1,5	19	25	55	58	js13	20	0 - 0.012	16	0 - 0.12	13	25	23	0.43	42.5	15.7
CGKA 25	CDT3 CGT3 CST3 - - - -	M16 x 1.5	23	30	65	68	js13	25	0 - 0.012	20	0 - 0.12	17	30	23	0.73	67	24.7
CGKA 30	CDT3 CGT3 CST3 - - - -	M20 x 1.5	29	36	80	85	js13	30	0 - 0.012	22	0 - 0.12	19	35	46	1.3	108	39.9
CGKA 40	CDT3 CGT3 CST3 - - - -	M27 x 2	37	45	100	105	js13	40	0 - 0.012	28	0 - 0.12	23	45	46	2.3	156	57.6
CGKA 50	CDT3 CGT3 CST3 - - - -	M33 x 2	46	55	125	130	js13	50	0 - 0.012	35	0 - 0.12	30	58	80	4.4	245	90.4
CGKA 60	CDT3 CGT3 CST3 - - - -	M42 x 2	57	68	160	150	js13	60	0 - 0.012	44	0 - 0.12	38	68	195	8.4	380	140.2
CGKA 802	CDT3 CGT3 CST3 - - - -	M48 x 2	64	90	205	185	js13	80	0 - 0.015	55	0 - 0.15	47	82 4)	385	15.6	585	215.9
CGKA 100	CDT3 CGT3 CST3 - - - -	M64 x 3	86	110	240	240	js13	100	0 - 0.02	70	0 - 0.2	57	116	660	28	865	319.2

1)	Cannot be re-lubricated
2)	Can be re-lubricated via lubricating hole
3)	Related bolt Ø h6
4)	Dimensions may differ from the standard depending on the manufacturer
5)	MA = tightening torqueThe swivel head must always be screwed against the shoulder of the piston rod. Afterwards, the clamping screws must be tightened with the specified tightening torque.
6)	m = weight of swivel head
7)	C0 = static load rating of the swivel head
8)	Fadm = max. admissible load of the swivel head for increasing or alternating loads

Notice:

Geometry and dimensions may differ depending on the manufacturer. In case of combination with other mounting elements, the usability must be checked.
