Z1S6C50-4X/V
Manufacturer: Bosch Rexroth
Material #: R901086087
Model : Z1S6C50-4X/V
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

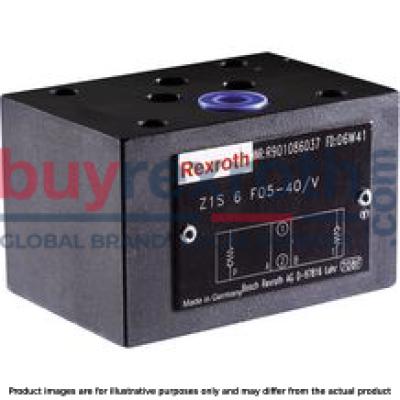

The Bosch Rexroth Z1S6C50-4X/V (R901086087) is a highly versatile direct operated check valve designed for seamless integration into hydraulic systems requiring leak-free blocking in one direction and free flow in the opposite. This sandwich plate valve is ideal for vertical stacking applications, functioning both as an angle valve and a straight-through valve. The model adheres to the ISO porting pattern standard, ensuring compatibility with a wide range of systems.
Equipped with a high-performance plastic poppet, the Z1S6C50-4X/V guarantees perfect leaktightness, critical for maintaining system integrity and performance. The included spring aids in the closing movement of the poppet and ensures that it remains closed when no fluid is flowing through the valve. Additionally, this model features a plastic socket that not only limits the stroke of the poppet but also serves as a seal when mounted on the plate side of installations; this unique feature negates the need for an additional seal ring at this position.
The corrosion-protected design of this check valve extends its service life even in harsh operating environments. For systems requiring customization, users can adjust the external seal rings to accommodate special hydraulic fluids. Furthermore, optional measuring ports are available for enhanced monitoring capabilities.
As an angle valve, it can link or close off up to three internal channels while providing stop and sealing functions via its plug screw. In contrast, as a straight-through valve section, it facilitates simple connections within hydraulic circuits.
For those needing throttle check capabilities, this functionality can be requested upon order. The Bosch Rexroth Z1S6C50-4X/V is designed to withstand maximum operating pressures up to bar levels and can handle flow rates measured in liters per minute (l/min), though specific values are dependent on component series and configurations chosen during purchase.
$522.00 USD
More are expected on February 10, 2025
Status: This product is temporarily out of stock.
Qty: Delivered as early as February 10, 2025 when ordered in
This product is eligible for factory repair.
The valve type Z1S is a direct operated check valve in sandwich plate design.
It is used for the leakage-free blocking in one direction and allows for free flow in the opposite direction.
The stroke of the poppet (1) is limited by the plastic socket (2). The installed spring (3) supports the closing movement. When no fluid flows through the valve, the spring (3) keeps the poppet (1) in closed position.
In contrast to the straight-through valve (section 1), the angle valve (section 2) links or closes off up to three internal channels. Stop and sealing function are taken over by the plug screw (4).
Notice:
For all installation positions in which the blue plastic socket (2) is mounted at the plate side ➁, no additional seal ring may be used at this position!
At the component side ➀, the seal ring (5) (as usual) seals the assembly installed downstream.
The installed plastic socket (2) has a sealing function and may not be removed or damaged.
Section 1: Type Z12 6 F (straight-through valve)
Section 2: Type Z1S 6 B-A (angle valve)
(measured with HLP46, ϑOil = 40 ±5 °C)
Straight-through valve
∆p-qV-characteristic curves (A2 → A1)
Angle valve
Straight-through valve (➀ = component side, ➁ = plate side)
Version "A"
Version "D"
Version "P"
Version "B"
Version "E"
Version "T"
Version "C"
Version "F"
Angle valve (➀ = component side, ➁ = plate side)
Version "AB-P"
Version "T-P"
Version "B-A"
Examples of special versions (➀ = component side, ➁ = plate side)
Version "SO68"
(check valve in channel P, measuring port P Out G1/4)
Version "SO118"
(check valve in channel P, measuring port P Out G1/4)
Version "SO90"
(check valve in channel P, measuring port A and B G1/4)
Version "SO2"
(check valve in channel P, measuring port T G1/4)
Version "SO104"
(check valve in channel P, direction of flow P1 → P2)
Straight-through valve
Dimensions in mm
|
|
Required surface quality of the valve contact surface |
|
Type |
B1 |
B2 |
H1 |
H2 |
|
mm |
mm |
mm |
mm |
|
| Z1S 6 C...SO68 | 22 | - | 13.5 | - |
| Z1S 6 P...SO68 | - | 26.5 | - | 13 |
| Z1S 6 P...SO118 | 26.5 | - | 13 | - |
| Z1S 6 P...SO90 | 22 | 22 | 20 | 20 |
| Z1S 6 P...SO2 | - | 17.5 | - | 20 |
|
① |
component side |
|
② |
plate side |
|
1 |
Name plate |
|
2 |
Identical seal rings for ports A, B, P, T (plate side) |
|
3 |
Plastic socket, blue (plate side) |
|
4 |
Valve mounting bores |
|
5 |
Porting pattern according to ISO 4401-03-02-0-05 |
|
6 |
Plug screw for measuring port, tightening torque MA = 30 Nm + 10 % |
|
7 |
Locking pin ISO 8752-3x8-St (only version "60" and "62") |
|
8 |
Bore for locking pin (only version "60" and "62") |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
6 |
4 |
ISO 4762 - M5 10.9 |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Angle valve
Dimensions in mm
|
|
|
Required surface quality of the valve contact surface |
|
Type |
B3 |
|
mm |
|
| Z1S 6 AB-P | 24.5 |
| Z1S 6 T-P | 24.5 |
| Z1S 6 B-A | 22 |
|
1 |
Name plate |
|
2 |
Identical seal rings for ports A, B, P, T (plate side) |
|
3 |
Plastic socket, blue (plate side) |
|
4 |
Valve mounting bores |
|
5 |
Porting pattern according to ISO 4401-03-02-0-05 |
|
7 |
Locking pin ISO 8752-3x8-St (only version "60" and "62") |
|
8 |
Bore for locking pin (only version "60" and "62") |
|
9 |
Plug screw, tightening torque MA = 55 Nm + 10 % |
|
① |
component side |
|
② |
plate side |
Valve mounting screws (separate order)
|
Size |
Quantity |
Hexagon socket head cap screws |
Material number |
|
6 |
4 |
ISO 4762 - M5 10.9 |
- |
Notice:
Length and tightening torque of the valve mounting screws must be calculated according to the components mounted under and over the sandwich plate valve.
Check valve installation set: Disassembly and assembly
Disassembly/assembly without causing damage is achieved by using the special multi-purpose tool (1) (separate order, material no. R901182853).
Disassembly:
Push out the check valve installation set.
Assembly:
Insert the check valve installation set and push in the plastic socket (2).
With correct assembly using the special multi-purpose tool (1), the protrusion of the plastic socket (2) is approx. 0.3 mm.
Notice:
Once removed, plastic sockets may no not be used again.
