POSITIONING UNIT PE 5/T

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

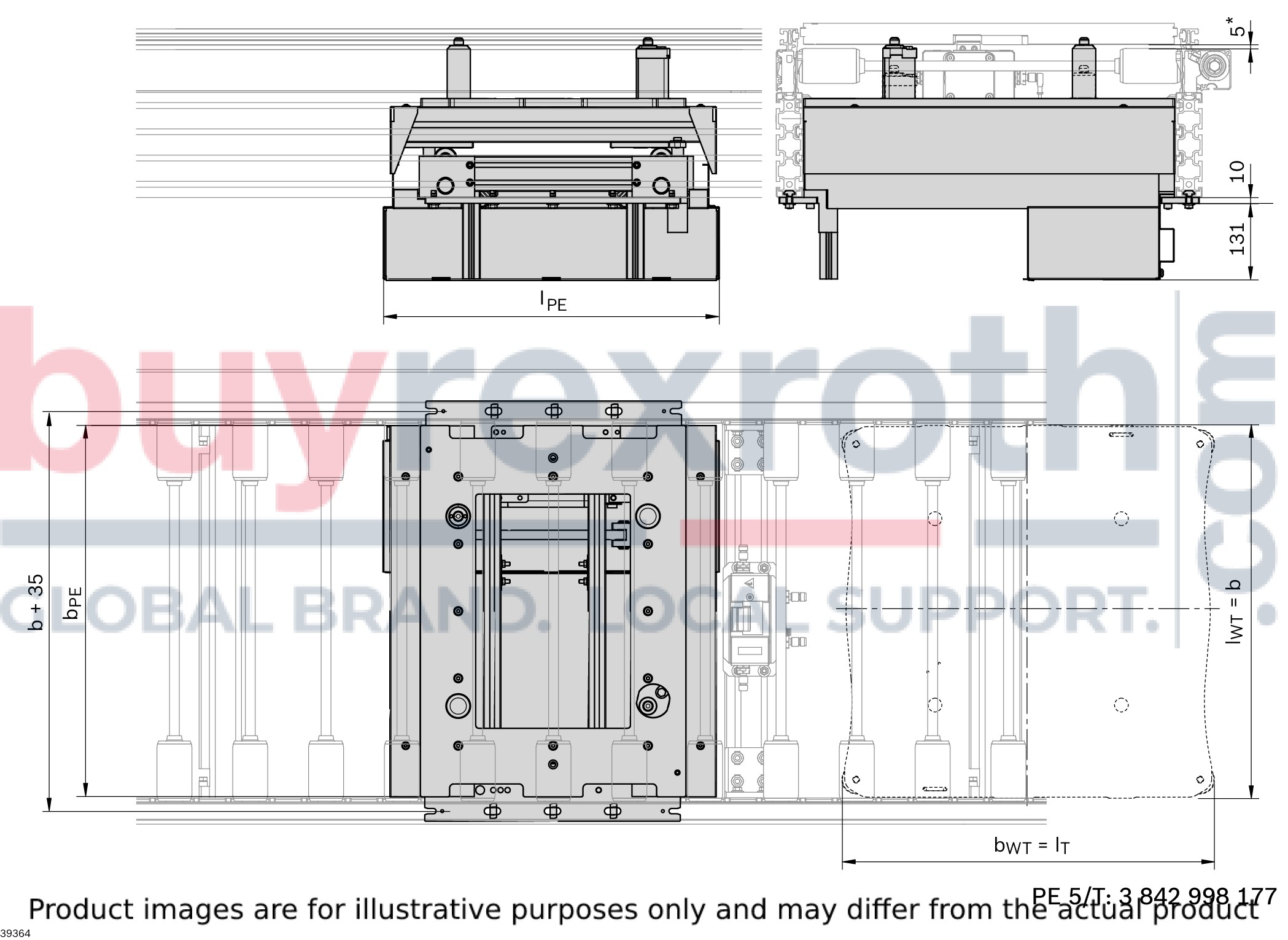

The Bosch Rexroth POSITIONING UNIT PE 5/T (3842998177) is a sophisticated component designed for precise positioning of workpiece pallets within manual or automated processing stations. This unit is particularly adept at handling tasks that require high positioning accuracy, with a remarkable precision of ±0.1 mm in both the x and y directions. It can be integrated with all WT workpiece pallets, offering versatility in its applications, and can be installed from above if necessary. The PE 5/T ensures operational flexibility by allowing lift over the transport level and is capable of withstanding vertical process forces up to 400 N regardless of the WT weight, ensuring reliable performance under various load conditions. This unit is compatible with ST H and ST XH conveyor sections but not suitable for ST HFR or ST XHFR types. For pneumatic operation, it features a compressed air connection and accommodates a push-in air connection of 4 mm. Installation considerations include placing support legs directly in front and behind the unit when assembling within an ST H section to maintain stability and process force capability. The PE 5/T also offers the potential for higher process forces up to 1200 N with direct support upon request, demonstrating its robustness for more demanding applications. Included with the product are fastening materials for mounting within ST XH conveyor sections along with a stop kit for VE2D and VE2/3D. While fully assembled upon delivery, additional accessories such as lateral guide covers and protective sleeves are recommended for optimal use. Assembly kits are required when integrating into ST H sections, further enhancing its adaptability in various industrial setups. In summary, the Bosch Rexroth POSITIONING UNIT PE 5/T stands out as a reliable solution for precise workpiece positioning, catering to high accuracy requirements while offering robust force handling capabilities within diverse conveyor setups.
