R900770104

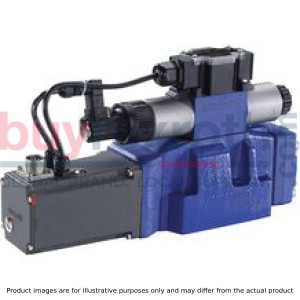

PROPORTIONAL DIRECTIONAL VALVE 4WRTE10V100L-4X/6EG24EK31/A1M

Manufacturer: Bosch Rexroth

Material #: R900770104

Model : 4WRTE10V100L-4X/6EG24EK31/A1M


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth 4WRTE10V100L-4X/6EG24EK31/A1M (R900770104) is a high-performance industrial hydraulic valve designed for precise control of oil flow direction. Characterized by its linear characteristic curve, this pilot-operated spool valve features internal piston position feedback for high accuracy. It is equipped with integrated electronics for electrical actuation and comes with a connector pole PE according to EN for electrical connections. The valve is constructed from several main assemblies including a housing with the main stage control spool and optional spool position monitoring, integrated electronics (potentially with an electronics protection membrane), and a pilot control valve that includes an inductive position transducer and pressure feedback. The WRTE-type valves are capable of maintaining the central position of the main stage control spool when de-energized, thanks to centering springs and pressure feedback. Spool position monitoring is available through inductive switches that signal via two output pins when deviations occur from the zero position. This feature can be instrumental for superior control systems requiring monitoring functions. This specific model has applications within safety-related contexts, meeting EN requirements as a switch-off element in two-channel applications up to Performance Level e. It ensures reliable operation even under failure of supply voltage by automatically controlling pressure at consistent levels in the control chambers. The 4WRTE10V100L-4X/6EG24EK31/A1M offers flexibility for various applications such as position, velocity, and pressure control. Its robust design ensures safe operation with automatic pressure compensation and spring-centered or offset positions of the control spool. Furthermore, it can be optionally fitted with spool position monitoring. With a maximum operating pressure of bar and maximum flow rate of l/min, this valve maintains nominal flow at l/min. It adheres to size specifications outlined in CETOP D standards and ISO diagrams for subplate mounting, ensuring compatibility across various hydraulic systems. The valve's seals are made from NBR material, supporting its use with hydraulic fluids such as HL, HLP, HLPD, HVLP, HVLPD, and HFC types.

$10,546.00 USD

More are expected on October 21, 2024
  Add to Cart

Status: This product is temporarily out of stock.


Qty: Delivered as early as October 21, 2024 when ordered in

This product is eligible for factory repair.
