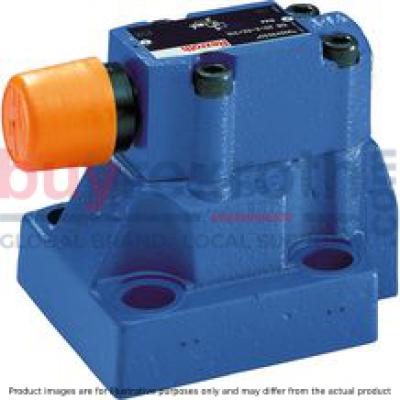

R900768211

DB20-3-5X/100/12

Manufacturer: Bosch Rexroth

Material #: R900768211

Model : DB20-3-5X/100/12


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth DB20-3-5X/100/12 (R900768211) is a high-performance pressure relief valve designed for efficient control and limitation of operating pressure within hydraulic systems. This pilot-operated valve is composed of a main valve with a main spool insert, alongside a pilot control valve that features an adjustable pressure element. The DB20-3-5X/100/12 operates by applying pressure to channel P, which influences both the main spool and the ball in the pilot control valve through strategically placed nozzles and control lines. When the pressure at channel P surpasses the preset value on the spring, the ball opens counteracting the spring force, allowing hydraulic fluid from the spring-loaded side of the main spool to flow into the tank. This process can be either internal or external depending on the type, ensuring that operating pressure is maintained as per set requirements. Moreover, this versatile unit can be unloaded or switched to an alternative second pressure rating via port X. The DB20-3-5X/100/12 is designed for subplate mounting with porting patterns that comply with ISO standards NG6, NG10, and NG16. It can also function as a screw-in cartridge valve for threaded connections. Users have multiple adjustment options for setting pressure including a rotary knob, sleeve with hexagon and protective cap, lockable rotary knob with scale, or rotary knob with scale. The Bosch Rexroth DB20 series valves are recognized for their corrosion-resistant design and are available in various sizes and component series. This specific model has a maximum operating pressure of 350 bar and can accommodate maximum flow rates as indicated by its specifications. The combination of precise control and robust construction makes this valve an essential component for sophisticated hydraulic applications requiring reliable pressure management.

$1,048.00 USD

More are expected on March 13, 2025
  Add to Cart

Status: This product is temporarily out of stock.


Qty: Delivered as early as March 13, 2025 when ordered in

This product is eligible for factory repair.
