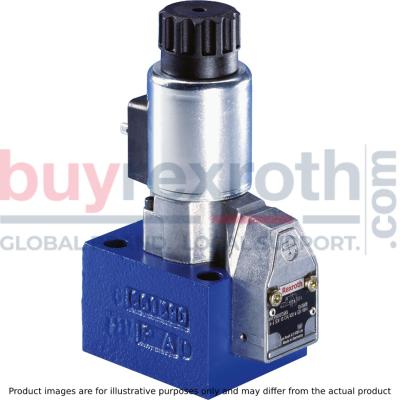

POPPET DIRECTIONAL VALVE M-3SEW6U3X/420MG24N9K4/B15V

Manufacturer: Bosch Rexroth

Material #: R900215185

Model : M-3SEW6U3X/420MG24N9K4/B15V

Destination

$1,275.48 USD

Availability: Backordered

Ships from CA

Add to Cart

Qty:
Delivered as early as September 1, 2026

POPPET DIRECTIONAL VALVE M-3SEW6U3X/420MG24N9K4/B15V

Size 6, symbol U, electrical with solenoid, 24 V DC

Industrial hydraulic valve in a high performance range, reliable switch of oil flow direction according to hydraulic symbol

Unpacked Weight: 1.49 kg

With throttle insert nozzle Ø 1.5 mm in channel P
Seat valve
Direct actuated
With concealed manual override: With concealed auxiliary actuation
Maximum flow 25 l/min
Component series 3X
Size 6
Maximum operating pressure 420 / 630 bar

Data Sheet	Download Data Sheet
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual
Manual	Download Manual

Connection diagram	ISO 4401-03-02-0-05
Max. pressure	420
Max. flow	25
Spool symbol	Symbol U
Type of connection	Subplate mounting
Size	6
Type of actuation	with solenoid actuation
Number of ports	3
Number of switching positions	2
Supply voltage	24 VDC
Electrical connector	Connector 3-pole (2 + PE)
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid	HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Seals	FKM
Productgroup ID	9,10,11,12,13,14
Connection diagram NFPA	NFPA T3.5.1 R2-2002 D03
Size_CETOP	D03
Weight	1.49
