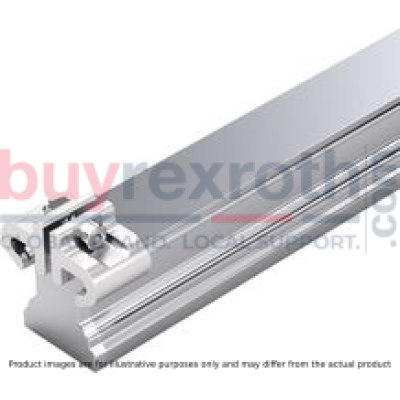

| Area of application: For very harsh environments |
| Robust strip clamp |
| For mounting from above |
| Ball guide rail as well as all steel parts made of corrosion-resistant steel according to DIN EN 10088 |
| Aluminum strip clamps |
| Observe the instruction for mounting! Please request the "Mounting instructions for ball rail systems" and "Mounting instructions for cover strip". |
| Maximum rigidity in all load directions |
| High torque load capacity |
| A single cover for all holes. No end-face hole required for strip clamp. |
| Data Sheet | Download Data Sheet |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Manual | Download Manual |
| Size T (profiled rail systems) | 60 |
| Material (profiled rail systems) | Corrosion resistant steel |
| Size N6 with tolerance (profiled rail systems) | 10,3 mm ±0,5 |
| Number of sections | One-piece |
| Guide rail mounting | For bolting from above |
| Product information | Please configure the product to add it to the shopping cart. |
| Footnote permissible ambient temperature (min ... max) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Max. length Lmax | 1856 |
| Size S5 (profiled rail system) | 4.5 |
| Permissible ambient temperature | 0 °C ... +80 °C |
| Size N6 tolerance (profiled rail systems) | |
| Format | SNS – Standard guide rail |
| Size A2 (profiled rail systems) | 15 |
| Size D | 7.4 |
| Guide rail cover | With cover strip and strip clamps |
| Mass m (kg/m) | 1.4 |
| Footnote of H2 with cover strip (profiled rail systems) | With cover strip 0.1 mm |
| Size T1 s (profiled rail systems) | 28 |
| Number of holes nB (profiled rail systems) | 30 |
| Pitch T guide rail | 60 |
| Size N6 (profiled rail systems) | 10.3 |
| Footnote of size T1 s (profiled rail systems) | Preferred dimension T1S with tolerances ± 0.75 recommended. |
| Recommended rail length (formula) | L = nB • T ‒ 4 mm |
| Size H2 with cover strip (profiled rail systems) | 16.3 |
| Height of guide rail H2 with cover strip | 16.3 |
| Productgroup ID | 17 |
| Accuracy class | N - Normal |
| Permissible ambient temperature (max) | |
| Size F5 (profiled rail systems) | 12 |
| Size F4 with cover strip (profiled rail systems) | 7.3 |
| Permissible ambient temperature (min) | |
| Max. length Lmax (4 m guide rails) | 1856 |
| Runner block or guide rail | Guide rail |
| Size T1 min (profiled rail systems) | 12 |
| Size F6 (profiled rail systems) | 2 |
| Size T1 max (profiled rail systems) | 50 |
| Linear guide type | Ball rail system |
| Minimum length Lmin | 84 |
| Weight | 0.000 |
| Nominal size | 15 |
| Version | Ball rail system |
