R160510931

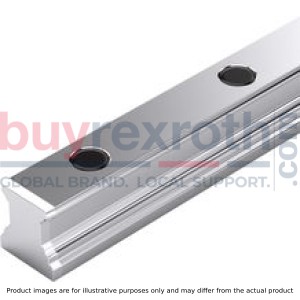

BALL GUIDE RAIL CARBON STEEL KSA-015-SNS-U-MA-AK

Manufacturer: Bosch Rexroth

Material #: R160510931

Model : B.GUIDE RAIL CS KSA-015-SNS-U-MA-AK


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***
The Bosch Rexroth B.GUIDE RAIL CS (R160510931) is a high-precision ball guide rail designed to deliver maximum rigidity and torque load capacity in various applications. This one-piece rail system is part of the SNS series, which stands for slimline width, normal length, and standard height, ensuring a compact design that can be easily integrated into a range of setups. The guide rail itself is constructed from carbon steel CS, known for its durability and strength. Featuring an ultra precision accuracy class, this ball guide rail guarantees precise movement and positioning. It is suitable for mounting from above thanks to the fastener MA, which allows bolting directly onto the surface with plastic mounting hole plugs—eliminating the need for additional space at the ends of the rail. The AK cover consists of plastic caps that protect the system while maintaining its sleek appearance. The product specifications indicate a T-profiled rail system with a permissible ambient temperature range from -20°C to +80°C for standard operation; however, it's advised to consult Bosch Rexroth for use under negative temperatures. The maximum length (Lmax) supported by this guide rail is defined by its N-size tolerance profile in millimeters. This model offers a mass of 2.3 kg/m and comes with a recommended formula for calculating the optimal rail length based on the number of holes (nB) and pitch (T). With these features combined, the Bosch Rexroth B.GUIDE RAIL CS provides an efficient solution for linear movement in various applications where precision and rigidity are paramount. It fits seamlessly within T-sized profiled rail systems and supports a wide range of ambient operating temperatures, making it versatile across different environments.

This product is not available. CLICK HERE to create a support ticket for us to locate your part or a suitable replacement
