SOLID SHAFT WV-50H6-CR

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

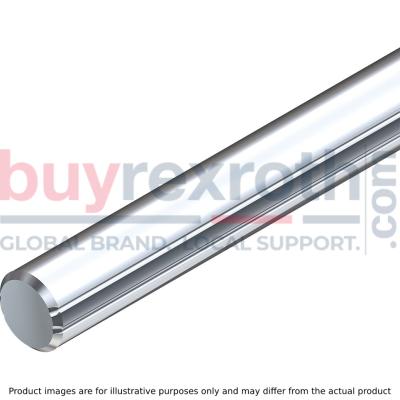

The Bosch Rexroth SOLID SHAFT (R100005060) is a premium quality precision steel shaft designed for high-performance linear motion applications. This solid shaft is meticulously crafted from heat-treated steel and features a hard chrome-plated outer diameter, offering exceptional corrosion protection and durability. The shaft diameter adheres to a h6 tolerance grade, ensuring a precise fit with linear bushings. With an approximate hardness of 900 HV with chrome plating thickness around 20 µm, the SOLID SHAFT WV-50H6-CR guarantees robustness and wear resistance in demanding operational conditions. Its surface roughness RA is maintained at 0.3 µm, which contributes to its smooth operation and longevity. The depth of hardness extends to a minimum of 0.5 mm, providing the necessary resilience for heavy-duty use. The product is characterized by excellent straightness, with the smallest possible value being 0.2 µm for lengths under 1 m, as measured according to ISO standards. Regarding geometry and hardness, it complies with stringent industry standards to deliver reliable performance consistently. This solid shaft's design allows for sections to be combined into longer overall lengths without compromising functionality; linear bushings can easily be rolled over joints due to its uniformity and precision engineering. The cylindricity tolerance is noted as t3 while roundness tolerance is marked as t1, both contributing to the shaft's impeccable geometric accuracy. Weighing at approximately 9 kg/m, this model from Bosch Rexroth ensures that the structural integrity of your linear motion system is maintained without adding excessive weight. It stands out in the market for its attention to detail in terms of material quality and engineering precision, making it an ideal component for sophisticated linear guiding systems where reliability and accuracy are paramount.
