LIFT TRANSFER UNIT HQ 2/U2

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

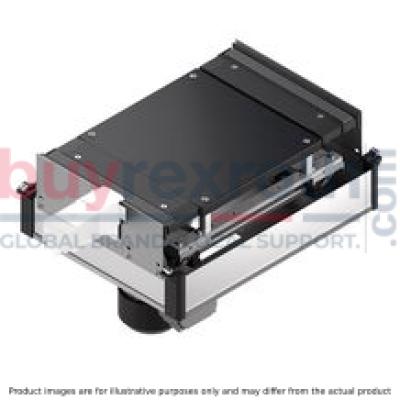

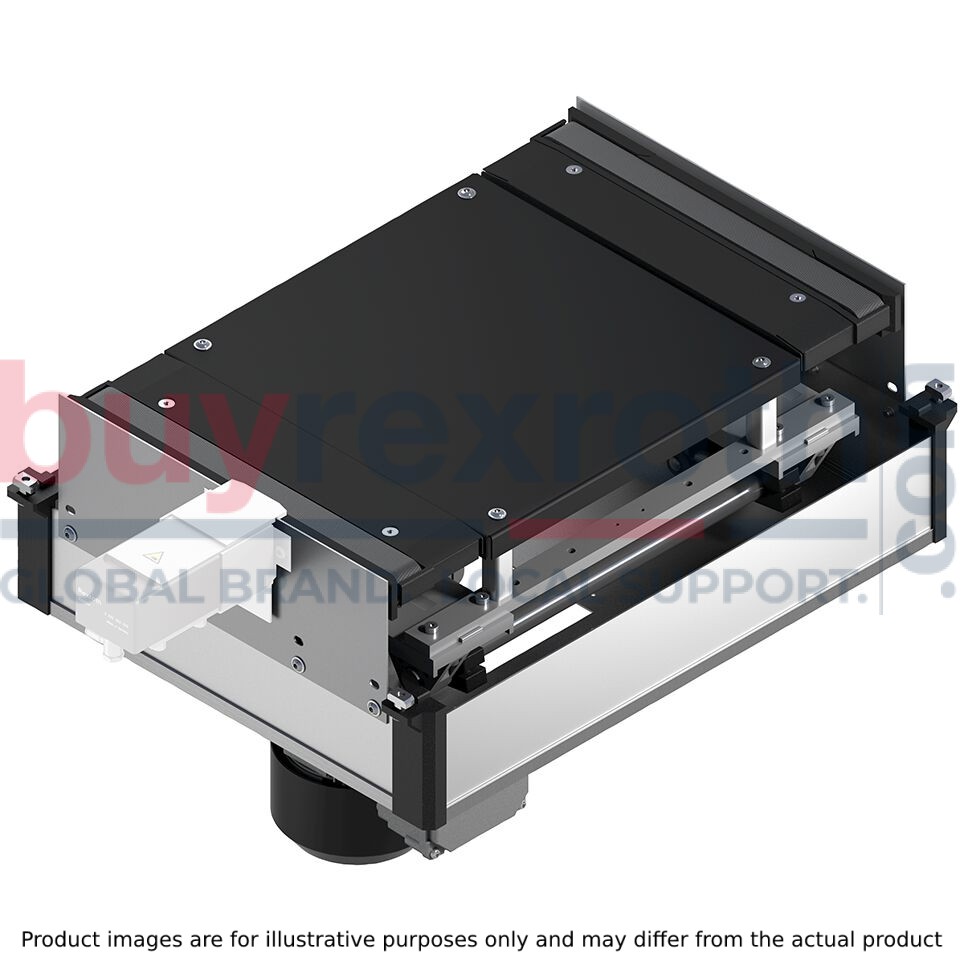

The Bosch Rexroth LIFT TRANSFER UNIT HQ 2/U2 (3842999843) is a specialized component designed for the efficient transfer of workpiece pallets between longitudinal and transverse sections within automated systems. This lift transverse unit is particularly suitable for use in environments with limited space, thanks to its compact design that allows the suspended drive motor to fit without widening beyond the section's outer dimensions. It is a reinforced version of the HQ U, equipped with two lift cylinders to handle larger workpiece pallet dimensions. The unit's conveyor medium utilizes a toothed belt, which is ideal for applications within an Electrostatic Protected Area (EPA). The pneumatic equipment provided can be configured for top, center, or top, center, bottom lift positions. It is compatible with mounting on either an ST section with a specified profile width or an ST H section with another profile width, ensuring versatility across different system configurations. Reversible operation adds to its flexibility while ensuring adaptability in various material handling scenarios. The product group ID and total weight capacity of the workpiece pallet are indicative of its robustness and suitability for heavy-duty operations. The unit also supports ESD requirements, making it safe for handling sensitive electronic components. Included in the scope of delivery are fastening materials, pneumatic equipment for two or three positions, an assembly kit for electrical position inquiry, and a protective housing. For optimal operation, additional recommended accessories include dampers and rockers compatible with various WT series workpiece pallets. This lift transfer unit comes fully assembled and includes kits for both electrical position inquiry and housing elements. To meet specific application needs, there are required accessories such as sensors for each position inquiry. Bosch Rexroth has ensured that this product aligns with energy efficiency standards under their Rexroth EE initiative.
