4WRPNH 10 C3 B50L-2X/M/24CF6G

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

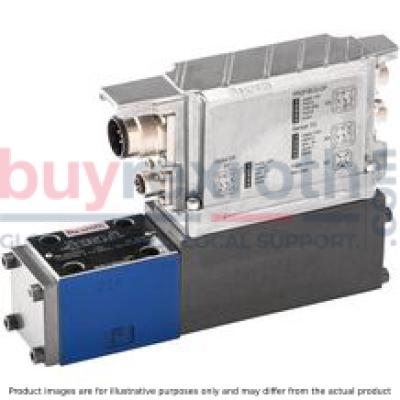

The Bosch Rexroth 4WRPNH 10 C3 B50L-2X/M/24CF6G (0811403357) is a state-of-the-art integrated axis controller based on high-response valves, designed to provide precise flow, position, and pressure control with additional p/Q function and NC functionality. This advanced valve system offers a range of control options including substitutional position/pressure or position/force control. The command value can be set either through an analog interface (X1) or via the field bus interface (X3), while actual value signals are provided through the same analog interface and can be read out via the field bus. The IAC-R valve incorporates a direct operated high-response valve with servo quality spool and sleeve, ensuring reliable performance. It is also equipped with digital integrated control electronics that support error detection functions such as cable break sensor technology, undervoltage, temperature monitoring of the electronics, communication errors, and watchdog timer. Additional features of this IAC-R valve include a ramp generator, internal command value profile, enable function in both analog and digital forms, error output 24 V for PLC/logic integration, actuating variable adaptation, dead band compensation, zero point correction, valve inflection compensation as well as friction compensation with direction-dependent amplification. For configuration and diagnostics purposes, users can utilize the WinHPT commissioning software compatible with Windows 2000 or Windows XP operating systems. This allows for easy parameterization and programming of NC functionalities. This Bosch valve also offers versatile connectivity options including four analog sensors inputs or one length measurement system input alongside two analog sensors. Command values can be preset via current or voltage signals through the field bus. For external communication purposes, it includes fieldbus connections like CAN bus with CANopen protocol DS408 and Profibus-DP Vo/V1. Quick startup is facilitated through a PC using the aforementioned commissioning software.
