0811403010

3FREX10B-1X/60L2G24-25N9Z4MM

Manufacturer: Bosch Rexroth

Material #: 0811403010

Model : 3FREX10B-1X/60L2G24-25N9Z4MM


***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Bosch Rexroth directly.***

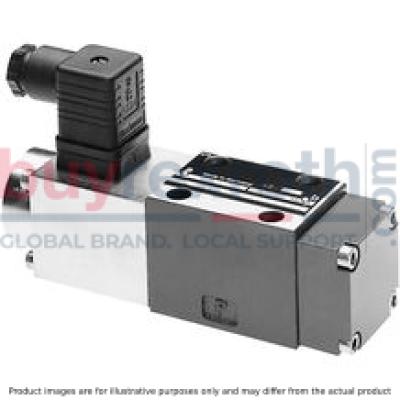

The Bosch Rexroth 3FREX10B-1X/60L2G24-25N9Z4MM (0811403010) is a proportional flow control valve designed for precise regulation of flow rates in hydraulic systems. These valves are available in sizes 6 and 10, directly operated, and suitable for subplate mounting with a porting pattern that conforms to ISO 4401 standards. The operation of these valves is controlled by a proportional solenoid, which allows for fine-tuning of the solenoid current to adjust the flow rate. These valves exhibit a hysteresis of less than 5%, ensuring consistent and accurate control of the hydraulic fluid within the system. The valve amplifier electronics that accompany these units come in various designs to meet diverse application needs. Notably, the "NO" (normally open) configuration is exclusively used as a 2-way flow control valve (type 2FREX), whereas the "NC" (normally closed) configuration can function both as a 3-way or a 2-way flow control valve. In terms of design specifics, when using the valve in its 3-way version, any residual flow is directed via port P. Conversely, for the 2-way version, fluid flows from A to B while ports P and T remain closed. This flexibility allows for tailored use in different hydraulic circuits and applications where precise flow regulation is critical. The Bosch Rexroth proportional flow control valve's robust design ensures reliable performance in controlling fluid movement, making it an essential component for various hydraulic systems requiring accurate and responsive flow management.

This product is not available. CLICK HERE to create a support ticket for us to locate your part or a suitable replacement

This product is eligible for factory repair.
